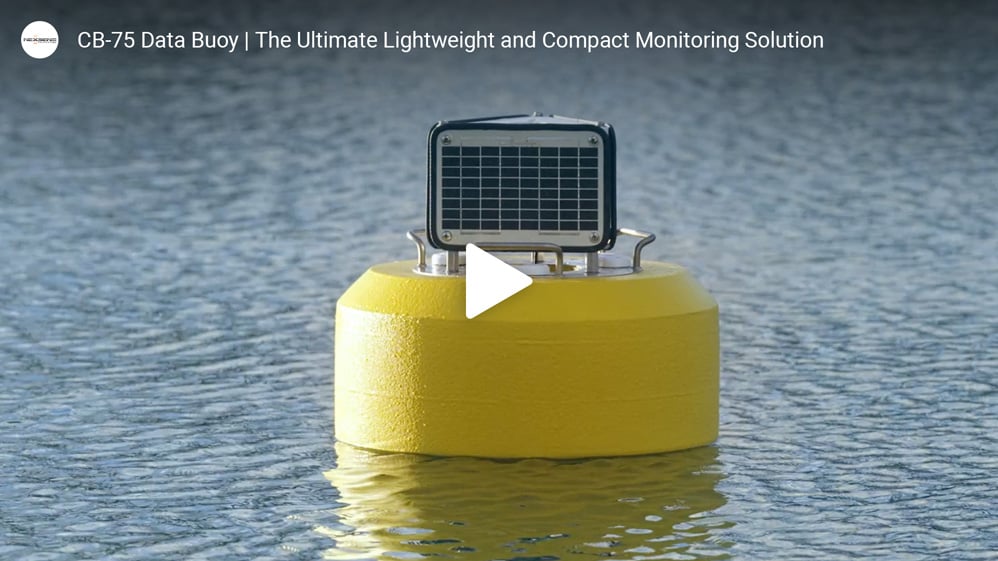

CB-75 Data Buoy
Features
Compact
With 21” (53.34cm) hull diameter and less than 40 lb. (18.2kg) weight, the CB-75 is ideally suited for tethered moorings.
Compact
With 21” (53.34cm) hull diameter and less than 40 lb. (18.2kg) weight, the CB-75 is ideally suited for tethered moorings.
Self-Powered
Select from a solar top with rechargeable battery pack for long-term deployments or a blank top with alkaline battery pack for short-term or seasonal applications.
Self-Powered
Select from a solar top with rechargeable battery pack for long-term deployments or a blank top with alkaline battery pack for short-term or seasonal applications.
Data Logging
The CB-75 data buoy is designed for integration with the X3-SUB submersible data logger with integrated power supply, wet-mate marine connectors and optional wireless telemetry.
Data Logging
The CB-75 data buoy is designed for integration with the X3-SUB submersible data logger with integrated power supply, wet-mate marine connectors and optional wireless telemetry.
Sensor Connections
Three sensor ports with wet-mate connectors on the X3-SUB submersible data logger allow for integration with GPS receivers, meteorological stations, water quality sondes and other sensor types.
Sensor Connections
Three sensor ports with wet-mate connectors on the X3-SUB submersible data logger allow for integration with GPS receivers, meteorological stations, water quality sondes and other sensor types.
Wireless Communications
The X3-SUB submersible data logger is available with 4G cellular or Iridium satellite communications. The integrated antenna is nestled securely beneath the solar top.
Wireless Communications
The X3-SUB submersible data logger is available with 4G cellular or Iridium satellite communications. The integrated antenna is nestled securely beneath the solar top.
Top-to-Bottom Ports
Three 1.5-inch pass-through ports allow for sensors to be mounted underwater while securely routing the cable. Each port includes a slotted cap secured by hex bolts.
Top-to-Bottom Ports
Three 1.5-inch pass-through ports allow for sensors to be mounted underwater while securely routing the cable. Each port includes a slotted cap secured by hex bolts.
Mooring Connections
Three eye nuts on the bottom frame provide mooring points for tethering and mooring applications. The stainless steel instrument cage provides ballast weight and also includes a mooring eye.
Mooring Connections
Three eye nuts on the bottom frame provide mooring points for tethering and mooring applications. The stainless steel instrument cage provides ballast weight and also includes a mooring eye.
Instrument Cage
The included instrument cage supports water quality sensors, multi-parameter sondes, ADCP's, and other subsurface instruments.
Instrument Cage
The included instrument cage supports water quality sensors, multi-parameter sondes, ADCP's, and other subsurface instruments.
Solar Beacon
The optional solar marine light has a one to three nautical mile range and securely mounts to the buoy top plate for maximum visibility.
Solar Beacon
The optional solar marine light has a one to three nautical mile range and securely mounts to the buoy top plate for maximum visibility.
Built to Last
Constructed of cross-linked polyethylene foam with a heavy polymer skin and an indestructible stainless steel frame, the CB-75 is designed for years of service.
Built to Last
Constructed of cross-linked polyethylene foam with a heavy polymer skin and an indestructible stainless steel frame, the CB-75 is designed for years of service.
Purchase in the USA
Visit our US distributor, Fondriest Environmental.
Purchase Internationally
Find a regional partner.
Contact a NexSens System Specialist
Need help designing an environmental measurement system? A NexSens application scientist will help you design the perfect monitoring system to meet field conditions and measurement needs.
Documents
Tech Specs
Hull Height: 13” (33.02cm)
Center Hole Inner Diameter: 5.5” (13.97cm)
Center Hole Height: 13" (33.02cm)
Pass-Through Hole Diameter: 1.5" (3.81cm)
Tower Height: 8.2” (20.83cm)
Solar Panels: 3x 4-watts
Weight: 28 lb. (12.70kg); 40 lb. (18.20kg) with X3-SUB
Hull Material: Cross-linked polyethylene foam with polyurea coating & stainless steel deck
Hardware Material: 316 stainless steel, 304 stainless steel (lifting handles)
Tethering Attachments: 3x 3/8” eye nuts
